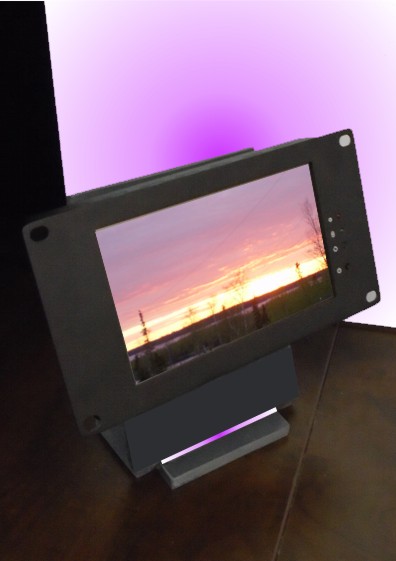

| Display Screen | 7" TFT LCD |
| Resolution | 800×480 (1,152,000 pixels) |
| Touch Panel | 4-wire resistive |
| Brightness | 450 cd/m2 |
| Aspect Ratio | 16:9 |
| Operating System | Debian GNU/Linux 8 |
| CPU | Intel N2800, dual-core 1.86 Ghz |
| Chipset | Intel NM10 chipset |
| Memory | 2 GB (DDR3) up to 4 GB |
| Storage | Optional HD: PCIe mSATA SSD 32 GB |
| Ethernet card | 1 x RJ-45 network card port, 10M/100M Ethernet |
| Panel interfaces | 1x Audio output, 2x USB, 2x LAN, 1x VGA output, 1x HDMI output, 1x SIM slot, 2x DC 12V, 1x Mini XLR, 5x RS232 (COM2 Support RS232/RS485/RS422) 1x Antenna |
| Audio output | AC97 4Ch, 3.1 Channels |
| Power consumption | ≤ 24W |
| Working Temperature | 0 – 50 ºC |
| Storage Temperature | -10 – 65 ºC |
| Power Supply | DC 6V-32 V (External power supply) |
| Dimension (LWD) | 200 × 117 × 46 mm |
| Weight | 1225 g |
